SANITARY PUMPS CFS Details

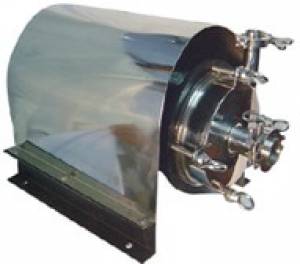

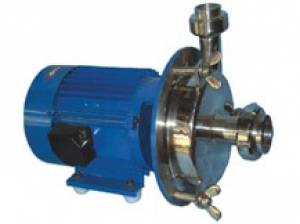

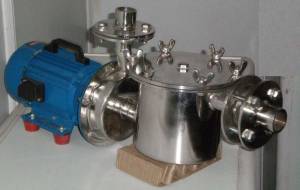

STAINLESS STEEL CENTRIFUGAL PUMP “CFS” SERIES
DAIRY & PHARMACEUTICAL PUMP
We supply a wide array of dairy and pharmaceutical pumps, which are made from high quality rolled stainless steel. Our range of dairy and pharmaceutical pumps feature unique designs, trouble free safe and smooth operation. We also customize these pumps as per the specific requirements of clients.
APPLICATION
- Milk, Cream, Butter Milk Condensed Milk
- Fruit 3uice, Beer, Wine, Sugar Syrup
- Vitamin Solutions, Sugar & Confectionery.
- R 0 Water, DM Water, Pure Water. Water for Injection (WFI)
- Vegetable Oil, Mineral Oil, Lub Oil etc.
- Pharmaceutical Formulations, Syrup etc.
- Alkaline Solution / Alcoholic Drinks.
- Acids, Fine Chemicals
- Bottling Plants, Soft Drinks & Distillery
- Food Processing / Liquid Food Stuffs
- Colour dyes and Pigments / Paints
- Descaling Applications, Paper & Cement Industries
- Water Treatment Plants
- Detergent, Soaps, Paste & Shampoo
- Textile Sizing, Dyeing & Finishing Systems
- Natural Cellulose Fiber / Synthetic Fiber System
- Hot & Cold Water Pumping.
RANGE
- Motor HP :- 0.25 HP TO 30 HP
- Head :- 04 Meters to 80 Meters
- Capacity :- 04 Lpm to 2000 Lpm
FEATURES
- As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
- Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less service corrosion.
- Super finish surface also ensure no ingress or emission of germs or impurities during pumping or idling which is basic requirement of sterile hygienic application.
- Designed for CIP (clean in place) or manual cleaning
- Pumps are highly energy efficient and requires less NPSH to function without cavitations
- Pump can handle liquids having viscosities up to 1500 centipoises
- The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
- The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
- Pumps are available with open/semi open impellers.
- Minimum working / rotating parts
- Safe and quite operation levels.
- Gentle product handling with lower maintenance and down line cost.
- Dynamically combinations of seal faces as per customer’s requirement (single seal / double seal, seal external cooling)
- Suitable for standard motor or flange type or foot cum flange type motor or engine.
- Monobloc or bare pumps or with trolley.
- Also with flame proof motors .
- Various types of connection like – triclove joints SMS, flanges or threaded nipple/coupling.
- Pumps with adjustable legs, available on request.
PUMPS WHICH WE DELIVER HAS
- Superior quality
- Value for money
- Trouble free performance
- Product customization
- Rapid delivery of both custom & standard pumps
- Higher efficiency
- Innovative design
- Responsibility of product/performance / service
MATERIAL OF CONSTRUCTION
- Casing :- AISI 316 / 316L / 304L / 304
- Impeller :- AISI 316 / 316L / 304L / 304
- Wear Plate :- AISI 316 / 316L / 304L / 304
- Shaft :- AISI 316 / 316L / 304L / 304
- Seal :- TC/TC , SIC/SIC , SS/Carbon or even seal in special application
- Motor Cover :- SS-304 / S 202
- Gasket :- Viton / Nitrile / Silicon / PTFE
| “CFS” SERIES | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Hp | Size | Head in Metres Discharge in LPM at 2900 RPM | |||||||||||||
| 3 | 5 | 7 | 10 | 12 | 15 | 17 | 20 | 22 | 25 | 27 | 30 | 35 | 40 | |||
| CFS-1 | 0.25 | 12 x 12 | 40 | 32 | – | – | – | – | – | – | – | – | – | – | – | – |
| CFS-2 | 0.5 | 25 x 25 | – | 100 | 45 | – | – | – | – | – | – | – | – | – | – | – |
| CFS-3 | 1 | 25 x 25 | – | – | 140 | 120 | 70 | 35 | – | – | – | – | – | – | – | – |
| CFS-3A | 1 | 38 x 38 | – | – | 181 | 95 | 50 | – | – | – | – | – | – | – | – | – |
| CFS-4A | 1.5 | 38 x 38 | – | – | – | – | 160 | 130 | 90 | 75 | – | – | – | – | – | |
| CFS-4B | 1.5 | 50 x 50 | – | – | – | 250 | 166 | 85 | – | – | – | – | ||||
| CFS-5A | 2 | 38 x 38 | – | – | – | – | 225 | 190 | 155 | 105 | 78 | 40 | – | – | – | |
| CFS-5B | 2 | 50 x 50 | – | – | 330 | 250 | 160 | 80 | – | – | – | – | – | – | – | – |
| CFS-6A | 3 | 50 x 38 | – | – | – | – | – | 250 | 220 | 180 | 135 | 108 | 50 | |||
| CFS-6B | 3 | 50 x 50 | – | – | – | – | – | 330 | 300 | 280 | 225 | 150 | 85 | – | – | – |
| Model | Hp | Size | Head in Metres Discharge in LPM at 2900 RPM | |||||||||||||
| 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | ||||||||
| CFS-7A | 5 | 50 x 38 | – | – | 260 | 230 | 190 | 145 | 90 | – | – | |||||
| CFS-7B | 5 | 65 x 50 | 400 | 370 | 300 | 230 | 180 | – | – | – | – | |||||
| CFS-8A | 7.5 | 50 x 38 | – | – | 290 | 280 | 250 | 225 | 190 | 120 | 60 | |||||
| CFS-8B | 7.5 | 65 x 50 | 500 | 450 | 385 | 280 | 230 | – | – | – | – | |||||
| CFS-9A | 10 | 50 x 38 | – | 500 | 480 | 470 | 450 | 410 | 350 | 290 | 190 | |||||
| CFS-9B | 10 | 65 x 50 | 560 | 510 | 450 | 370 | 280 | 210 | 150 | – | – | |||||
