“Creative Engineers” Barrel pumps works in reciprocating action.
Barrel pump is useful for safe and efficient handling of highly corrosive chemicals, solvents, acids, petroleum products diesel oil ,and fuel oils , plating solution , toxic chemicals etc.
It Eliminates danger of spillage explosion hazards.
Construction of MALHAR Pump is such that operating compressed air never gets in contact with pumped liquid.
The pump can be directly inserted in to the barrel threading provide on the pump adopter. It sucks the liquid from the bottom and hence less chances of leftover material. It does not have any type of motor and hence virtually zero maintenance, Contact pulsation dampener supplier, pulsation dampener manufacturer today.
FEATURES
Technical Data
Capacity 40 Lpm.
Head 15 Mtrs.
Operating Pressure 3 to 6 kg/cm²
Material of construction S.S.304 / 316
Discharge 1 Inch
Temperature 120° C

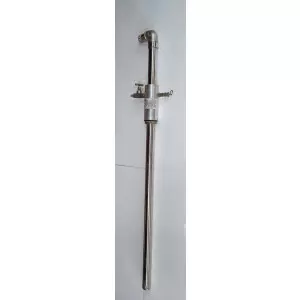

STAINLESS-STEEL PNEUMATIC OPERATED FORCE TYPE BARREL PUMPS
Stainless Steel Pneumatic Transfer Pump for Food Syrups, Ketchup, Flammable Media, Chemicals, Paint, Liquid Media with Fillers, Fuel
Flow rate – 70 liter per minute
MOC – SS304
Inlet diameter – 40 mm
Outlet diameter – 25 mm
Air Hose diameter – 8 mm
Safety Valve Pressure – 0.03 Mpa
Air Pressure > 0.1 MPa
Length of the Pump – 1.12 meter
Length of the Tube – 1 meter
Head – 4 meter
Weight – 6 kg
Filter Gauge supplied as free accessories
CODE | 591651 | |
---|---|---|
Type | QTQ | |
Application | Suction & Discharge Suction | |
SuckingPerformance | Pressure ofCompressed Air | 4 kgf/cm2 |
Vacuum Degree | 4,800mm/H2O | |
Recovery TimeFor 100 ltrClean Water | 60 sec | |
DischargingPerformance | Discharge Pressure | 0.7 kgf/cm2 |
Recovery TimeFor 100 ltrClean Water | 80 sec | |
Hose | φ32mm *3M | |
Suction & Discharge Suction | 300 mm |
HAND OPERATED DIAPHRAGM BARREL PUMPS:-PUMP MODELHDB CI-1HDB SS-1CAPACITY16 LPM16 LPMINLET X ... Continue
MODEL:? RHB SS?1• Outer Diameter :? 40 mm,• All wetted parts in SS 316 & PTFE.• Also offer pump in ... Continue
MODEL:? RHB PP?1• Outer Diameter :? 40 mm,• Body made glass filled polypropylene with PTFE vanesViton rubber... Continue
MODEL:? RHB CI?1• Outer Diameter :? 40 mm,• Solid cast Iron Construction,• 2 way operation,• 1&rdq... Continue
MODEL MBSS-1• Outer Pipe Dia meter : Ø40 mm• Outlet Size : 20 mm (3/4”)• Power : 0.88 kw&b... Continue
APPLICATIONSTo Transfer Highly Viscous Materials such as Petroleum Jelly,Adhesives, Creams, Pastes from Barrels & ... Continue
• Made from Cast Iron / ss as per customer’s requirement.• Work in any position Vertical / Horizontal Up... Continue
• Stainless Steel Pneumatic Transfer Pump for Food syrups, Ketchup, Flammable Media,• Chemicals, Paint, Liquid... Continue
“MALHAR” Barrel pumps works in reciprocating action. Barrel pump is useful for safe and efficient handling o... Continue
One of the most popular applications of diaphragm hand pump is as barrel pump, for emptying drums, barrels and carboys. ... Continue
