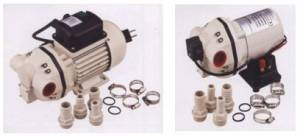

MODEL: ACAD40 / DCAD40
MODEL | ACAD40 | DCAD40 |
---|---|---|
Pump body material | EPDM | EPDM |
Maximum flow rate | 40 LPM | 40 LPM |
Maximum head | 15 mtr | 15 mtr |
Voltage | 230 V AC | 12 V DC |
Self priming | Yes | Yes |
PUMP MODEL | MDB CI-1 | HDB SS-1 |
---|---|---|
CAPACITY | 16 LPM | 16 LPM |
INLET X OUTLET SIZES | 1” X 1” | 1” X 1” |
WEIGHT | ||
MATERIAL OF CONSTRUCTION | CAST IRON CONSTRUCTION | SS CONSTRUCTION |
MODEL MBSS-1
OUTER DIA :- Ø40 mm,
Power :- 0.88 kw,
Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,
HEAD IN MTRS | 0 | 5 | 10 | 15 | 20 | 23 |
CAPACITY IN LPM | 43 | 31 | 26 | 16 | 6.3 | SHUT OF |
AMPERE | 2.8 | 2.8 | 2.5 | 2.5 | 2.2 | 2.0 |
MODEL MBPP-1
OUTER DIA :- Ø40 mm,
Power :- 0.88 kw,
Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,
HEAD IN MTRS | 0 | 5 | 10 | 15 | 20 | 23 |
CAPACITY IN LPM | 43 | 31 | 26 | 16 | 6.3 | SHUT OF |
AMPERE | 2.8 | 2.8 | 2.5 | 2.5 | 2.2 | 2.0 |
MODEL MBAL-1
OUTER DIA :- Ø40 mm,
Power :- 0.88 kw,
Speed :- 10000 RPM, Voltage :- 220v , 50 Hz,
HEAD IN MTRS | 0 | 5 | 10 | 12 |
CAPACITY IN LPM | 40 | 30 | 15 | SHUT OF |
AMPERE | 2.4 | 2.3 | 2.3 | 2.3 |

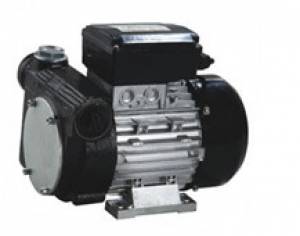

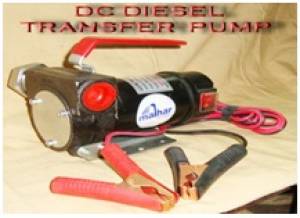

DC / AC diesel pump Cast iron pump body complete anticorrosive paint
Model | Flow rateL/min (max) | Voltage | CurrentAmp (max) | Duty cyclemax | RPM | Connections | Weightkg |
---|---|---|---|---|---|---|---|
DCTP 60 RVB | 60 | 12 | 18 | 30 MIN | 2800 | 3/4″ | 4.2 |
DCTP 60 RVB | 60 | 24 | 9 | 30 MIN | 2800 | 3/4″ | 4.2 |
ACTP 60 RVB | 80 | 230 | 6 | CONTINUOUS | 280 | 1” | 12 kg |
